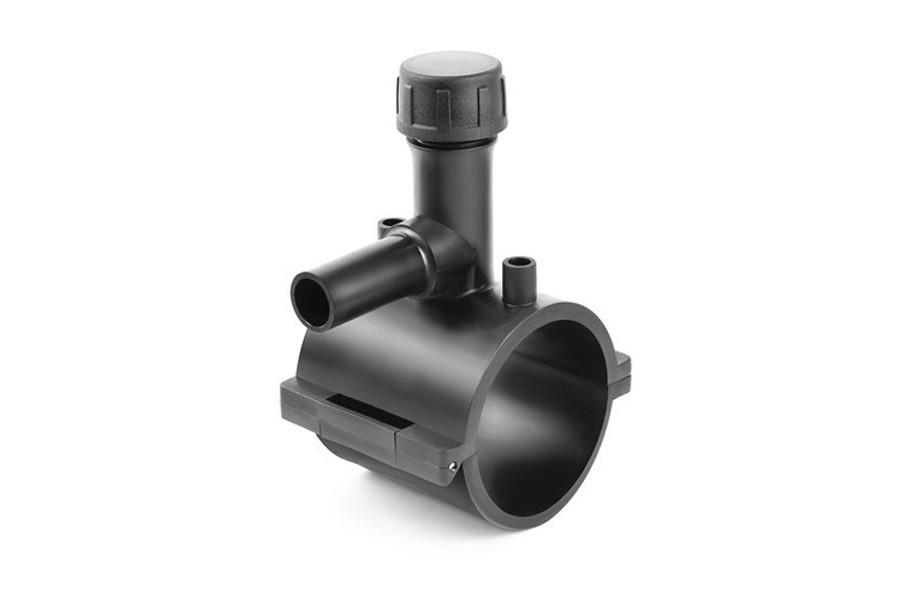

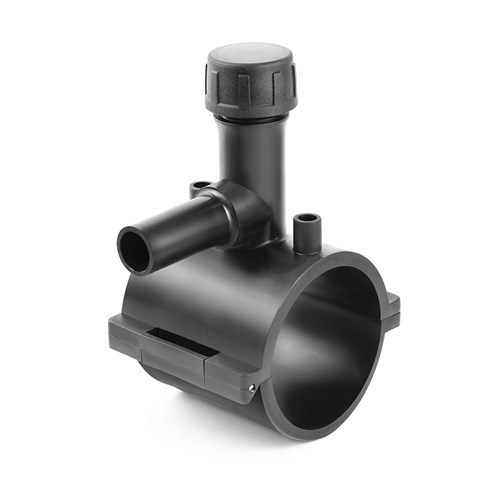

IBECO PE tryckanborrningssadel
Tryckanborrningssadel med inbyggd borr; PE100RC, SDR11; vatten PN16, gas PN10
Dokument och länkar
IBECO PE tryckanborrningssadel
Med inbyggd borr; PE100RC, SDR11; vatten PN16, gas PN10
|
Art.nr.
|
RSK nr.
|
För rör YDD1 (mm)
|
AvstickD2 (mm)
|
HöjdB (mm)
|
L1mm
|
C1mm
|
C2mm
|
Viktkg
|

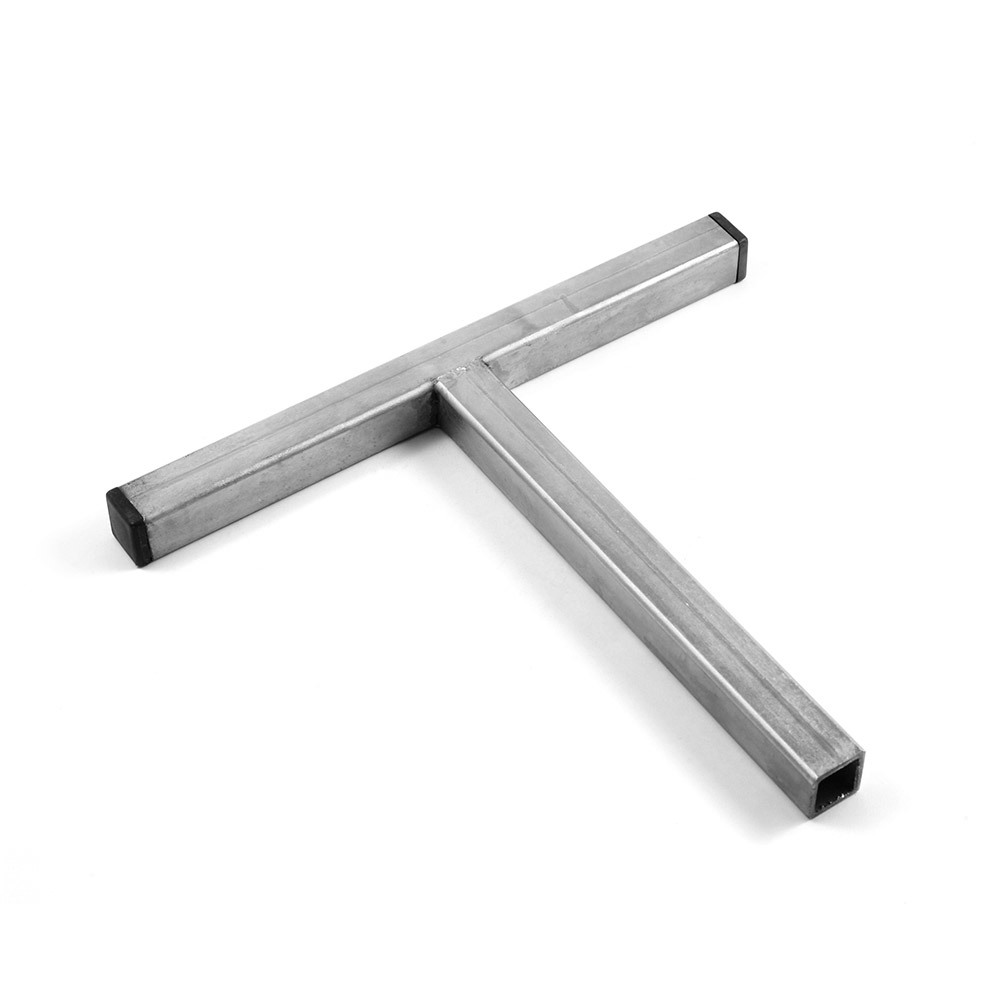

T-nyckelmm
|
Varukorg
|
|---|---|---|---|---|---|---|---|---|---|---|
|
TS04002011
|
2536585
|
40
|
20
|
105
|
70
|
13
|
92
|
0,271
|
12
|
|
|
TS04002511
|
2536586
|
40
|
25
|
105
|
70
|
13
|
92
|
0,277
|
12
|
|
|
TS04003211
|
2536587
|
40
|
32
|
105
|
70
|
13
|
92
|
0,282
|
12
|
|
|
TS05002011
|
2536588
|
50
|
20
|
149
|
66
|
30
|
106
|
0,64
|
12
|
|
|
TS05002511
|
2536589
|
50
|
25
|
149
|
65
|
30
|
106
|
0,645
|
12
|
|
|
TS05003211
|
2536590
|
50
|
32
|
149
|
65
|
30
|
106
|
0,6
|
12
|
|
|
TS05004011
|
2536591
|
50
|
40
|
149
|
82
|
30
|
104
|
0,652
|
12
|
|
|
TS06302011
|
2536592
|
63
|
20
|
149
|
65
|
30
|
106
|
0,595
|
12
|
|
|
TS06302511
|
2536593
|
63
|
25
|
149
|
65
|
30
|
106
|
0,59
|
12
|
|
|
TS06303211
|
2536594
|
63
|
32
|
149
|
65
|
30
|
106
|
0,595
|
12
|
|
|
TS06304011
|
2536595
|
63
|
40
|
149
|
83
|
30
|
105
|
0,6
|
12
|
|
|
TS06305011
|
2536596
|
63
|
50
|
220
|
106
|
89
|
137
|
0,92
|
17
|
|
|
TS06306311
|
2536597
|
63
|
63
|
220
|
111
|
75
|
139
|
0,945
|
17
|
|
|
TS07502011
|
2536598
|
75
|
20
|
151
|
66
|
30
|
105
|
0,558
|
12
|
|
|
TS07502511
|
2536599
|
75
|
25
|
151
|
64
|
33
|
105
|
0,533
|
12
|
|
|
TS07503211
|
2536600
|
75
|
32
|
151
|
66
|
30
|
105
|
0,547
|
12
|
|
|
TS07504011
|
2536601
|
75
|
40
|
151
|
83
|
30
|
105
|
0,571
|
12
|
|
|
TS07505011
|
2536602
|
75
|
50
|
193
|
108
|
88
|
138
|
0,7
|
17
|
|
|
TS07506311
|
2536603
|
75
|
63
|
193
|
98
|
90
|
136
|
0,71
|
17
|
|
|
TS09002011
|
2536604
|
90
|
20
|
235
|
77
|
88
|
138
|
1,034
|
17
|
|
|
TS09002511
|
2536605
|
90
|
25
|
235
|
77
|
87
|
138
|
1,039
|
17
|
|
|
TS09003211
|
2536606
|
90
|
32
|
235
|
85
|
87
|
138
|
1,04
|
17
|
|
|
TS09004011
|
2536607
|
90
|
40
|
235
|
107
|
87
|
138
|
1,06
|
17
|
|
|
TS09005011
|
2536608
|
90
|
50
|
235
|
107
|
87
|
138
|
1,085
|
17
|
|
|
TS09006311
|
2536609
|
90
|
63
|
235
|
98
|
87
|
137
|
1,148
|
17
|
|
|
TS11002011
|
2536610
|
110
|
20
|
175
|
69
|
30
|
105
|
0,789
|
12
|
|
|
TS11002511
|
2536611
|
110
|
25
|
175
|
70
|
30
|
106
|
0,827
|
12
|
|
|
TS11003211
|
2536612
|
110
|
32
|
175
|
65
|
30
|
105
|
0,835
|
12
|
|
|
TS11004011
|
2536613
|
110
|
40
|
175
|
82
|
30
|
104
|
0,836
|
12
|
|
|
TS11005011
|
2536614
|
110
|
50
|
245
|
105
|
87
|
137
|
1,226
|
17
|
|
|
TS11006311
|
2536615
|
110
|
63
|
245
|
98
|
88
|
137
|
1,296
|
17
|
|
|
TS12502011
|
2536616
|
125
|
20
|
245
|
65
|
30
|
105
|
0,778
|
12
|
|
|
TS12502511
|
2536617
|
125
|
25
|
175
|
69
|
30
|
105
|
0,783
|
12
|
|
|
TS12503211
|
2536618
|
125
|
32
|
175
|
65
|
30
|
105
|
0,783
|
12
|
|
|
TS12504011
|
2536619
|
125
|
40
|
175
|
83
|
28
|
104
|
0,789
|
12
|
|
|
TS12505011
|
2536620
|
125
|
50
|
245
|
109
|
88
|
137
|
1,178
|
17
|
|
|
TS12506311
|
2536621
|
125
|
63
|
245
|
98
|
88
|
136
|
1,25
|
17
|
|
|
TS14002011
|
2536622
|
140
|
20
|
245
|
78
|
88
|
138
|
0,987
|
17
|
|
|
TS14002511
|
2536623
|
140
|
25
|
245
|
85
|
88
|
138
|
1,012
|
17
|
|
|
TS14003211
|
2536624
|
140
|
32
|
245
|
85
|
88
|
138
|
1,023
|
17
|
|
|
TS14004011
|
2536625
|
140
|
40
|
245
|
85
|
88
|
138
|
1,127
|
17
|
|
|
TS14005011
|
2536626
|
140
|
50
|
245
|
106
|
88
|
137
|
1,132
|
17
|
|
|
TS14006311
|
2536627
|
140
|
63
|
245
|
98
|
88
|
137
|
1,136
|
17
|
|
|
TS16002011
|
2536628
|
160
|
20
|
265
|
78
|
83
|
138
|
1,5
|
17
|
|
|
TS16002511
|
2536629
|
160
|
25
|
265
|
85
|
82
|
138
|
1,51
|
17
|
|
|
TS16003211
|
2536630
|
160
|
32
|
265
|
85
|
82
|
138
|
1,52
|
17
|
|
|
TS16004011
|
2536631
|
160
|
40
|
265
|
106
|
83
|
138
|
1,52
|
17
|
|
|
TS16005011
|
2536632
|
160
|
50
|
265
|
106
|
82
|
137
|
1,53
|
17
|
|
|
TS16006311
|
2536633
|
160
|
63
|
265
|
93
|
82
|
136
|
1,63
|
17
|
|
|
TS18002011
|
2536634
|
180
|
20
|
260
|
85
|
82
|
138
|
1,53
|
17
|
|
|
TS18002511
|
2536635
|
180
|
25
|
260
|
85
|
82
|
138
|
1,54
|
17
|
|
|
TS18003211
|
2536636
|
180
|
32
|
260
|
85
|
82
|
138
|
1,54
|
17
|
|
|
TS18004011
|
2536637
|
180
|
40
|
260
|
107
|
82
|
138
|
1,55
|
17
|
|
|
TS18005011
|
2536638
|
180
|
50
|
275
|
107
|
82
|
137
|
1,58
|
17
|
|
|
TS18006311
|
2536639
|
180
|
63
|
275
|
98
|
82
|
136
|
1,64
|
17
|
|
|
TS20002011
|
2536640
|
200
|
20
|
270
|
85
|
88
|
138
|
1,23
|
17
|
|
|
TS20002511
|
2536641
|
200
|
25
|
270
|
85
|
88
|
138
|
1,345
|
17
|
|
|
TS20003211
|
2536642
|
200
|
32
|
270
|
85
|
88
|
138
|
1,119
|
17
|
|
|
TS20004011
|
2536643
|
200
|
40
|
270
|
107
|
88
|
138
|
1,145
|
17
|
|
|
TS20005011
|
2536644
|
200
|
50
|
270
|
106
|
88
|
137
|
1,176
|
17
|
|
|
TS20006311
|
2536645
|
200
|
63
|
245
|
98
|
88
|
136
|
1,458
|
17
|
|
|
TS22502011
|
2536646
|
225
|
20
|
245
|
85
|
88
|
139
|
1,124
|
17
|
|
|
TS22502511
|
2536647
|
225
|
25
|
245
|
85
|
88
|
139
|
1,134
|
17
|
|
|
TS22503211
|
2536648
|
225
|
32
|
245
|
85
|
88
|
138
|
1,334
|
17
|
|
|
TS22504011
|
2536649
|
225
|
40
|
245
|
111
|
90
|
140
|
1,35
|
17
|
|
|
TS22505011
|
2536650
|
225
|
50
|
245
|
107
|
88
|
137
|
1,169
|
17
|
|
|
TS22506311
|
2536651
|
225
|
63
|
245
|
98
|
88
|
136
|
1,474
|
17
|
|
|
TS25002011
|
2536652
|
250
|
20
|
245
|
85
|
87
|
138
|
1,35
|
17
|
|
|
TS25002511
|
2536653
|
250
|
25
|
245
|
85
|
87
|
138
|
1,373
|
17
|
|
|
TS25003211
|
2536654
|
250
|
32
|
245
|
85
|
87
|
138
|
1,384
|
17
|
|
|
TS25004011
|
2536655
|
250
|
40
|
245
|
106
|
88
|
138
|
1,39
|
17
|
|
|
TS25005011
|
2536656
|
250
|
50
|
245
|
109
|
88
|
137
|
1,425
|
17
|
|
|
TS25006311
|
2536657
|
250
|
63
|
245
|
98
|
88
|
136
|
1,517
|
17
|
|
|
TS28002011
|
2536658
|
280
|
20
|
240
|
84
|
86
|
138
|
1,325
|
17
|
|
|
TS28002511
|
2536659
|
280
|
25
|
240
|
84
|
86
|
138
|
1,373
|
17
|
|
|
TS28003211
|
2536660
|
280
|
32
|
240
|
84
|
86
|
138
|
1,384
|
17
|
|
|
TS28004011
|
2536661
|
280
|
40
|
240
|
98
|
88
|
136
|
1,425
|
17
|
|
|
TS28005011
|
2536662
|
280
|
50
|
240
|
98
|
88
|
136
|
1,425
|
17
|
|
|
TS28006311
|
2536663
|
280
|
63
|
240
|
98
|
88
|
136
|
1,517
|
17
|
|
|
TS31502011
|
2536664
|
315
|
20
|
247
|
86
|
87
|
140
|
1,35
|
17
|
|
|
TS31502511
|
2536665
|
315
|
25
|
247
|
86
|
87
|
140
|
1,365
|
17
|
|
|
TS31503211
|
2536666
|
315
|
32
|
247
|
86
|
87
|
140
|
1,384
|
17
|
|
|
TS31504011
|
2536667
|
315
|
40
|
247
|
98
|
88
|
136
|
1,424
|
17
|
|
|
TS31505011
|
2536668
|
315
|
50
|
247
|
98
|
88
|
136
|
1,492
|
17
|
|
|
TS31506311
|
2536669
|
315
|
63
|
247
|
98
|
88
|
136
|
1,526
|
17
|
|
Standarder och godkännanden
-
DVGW Certified
-
WRAS Approved Product
-
EN 1555
-
EN 12201
-
ISO 3126
